| NO. OF TEETH |
44
|
PITCH
|
12.7
|
|
TYPE
|
Star CUT
|
CRANK LENGTH
|
6.5” CC
|
|
OUTER DIA
|
183.65
|
BB AXLE HOLE
|
15.86-15.92
|
|
ROOT DIA
|
169.85
|
COTTER PIN HOLE
|
9.55-9.63
|
|
PITCH CIRCLE DIA
|
177.85
|
LOCATION
|
4.76-5.13
|
|
THREAD
|
9.16-20 TPI
|
||
| FINISHING |
Chrome Plated or Powder Coated
|
||
| NO. OF TEETH |
32
|
PITCH
|
12.7
|
|
TYPE
|
J/CUT
|
CRANK LENGTH
|
4.5” CC
|
|
OUTER DIA
|
BB AXLE HOLE
|
15.86-15.92
|
|
|
ROOT DIA
|
COTTER PIN HOLE
|
9.55-9.63
|
|
|
PITCH CIRCLE DIA
|
LOCATION
|
4.76-5.13
|
|
|
THREAD
|
9.16-20 TPI
|
||
| FINISHING |
Chrome Plated or Powder Coated
|
||
| NO. OF TEETH |
40
|
PITCH
|
12.7
|
|
TYPE
|
Star CUT
|
CRANK LENGTH
|
5.5” CC
|
|
OUTER DIA
|
166.5
|
BB AXLE HOLE
|
15.86-15.92
|
|
ROOT DIA
|
153.8
|
COTTER PIN HOLE
|
9.55-9.63
|
|
PITCH CIRCLE DIA
|
161.8
|
LOCATION
|
4.76-5.13
|
|
THREAD
|
9.16-20 TPI
|
||
| FINISHING |
Chrome Plated or Powder Coated
|
||

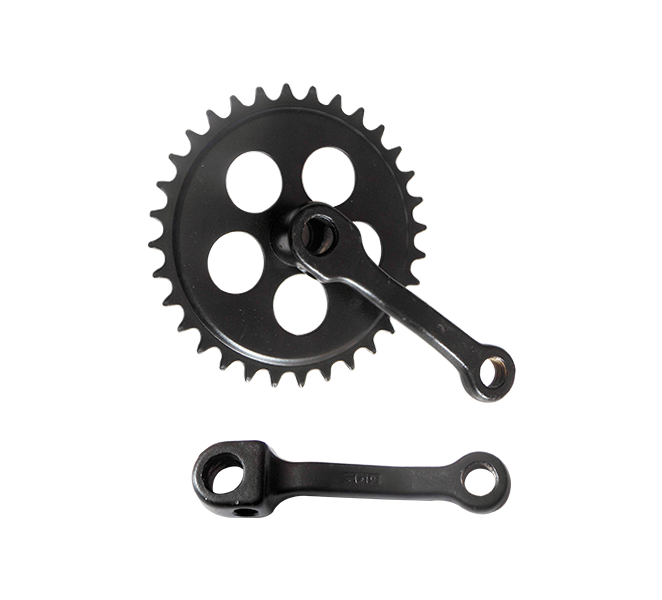

| NO. OF TEETH |
28
|
PITCH
|
12.7
|
|
TYPE
|
ROUND CUT
|
CRANK LENGTH
|
3.5” CC
|
|
OUTER DIA
|
1119
|
BB AXLE HOLE
|
15.86-15.92
|
|
ROOT DIA
|
105.23
|
COTTER PIN HOLE
|
9.55-9.63
|
|
PITCH CIRCLE DIA
|
113.23
|
LOCATION
|
4.76-5.13
|
|
THREAD
|
9.16-20 TPI
|
||
| FINISHING |
Chrome Plated or Powder Coated
|
||
|
NO. OF TEETH
|
48
|
PITCH
|
12.7
|
|
TYPE
|
J/CUT,BCP
|
CRANK LENGTH
|
7″CC(177.8)
|
|
OUTER DIA
|
199
|
BB AXLE HOLE
|
15.86 – 15.92
|
|
ROOT DIA
|
186.1
|
COTTER PIN HOLE
|
9.55 – 9.63
|
|
PITCH CIRCLE DIA
|
194.1
|
LOCATION
|
4.76 – 5.13
|
|
THREAD
|
9.16 – 20TPI
|
||
| FINISHING |
Chrome Plated or Powder Coated
|
||
| NO. OF TEETH | 36 | PITCH | 12.7 |
|
TYPE
|
J/CUT BCP
|
CRANK LENGTH
|
5″CC(127MM)
|
|
OUTER DIA
|
152.5
|
BB AXLE HOLE
|
15.86 – 15.92
|
|
ROOT DIA
|
137.4
|
COTTER PIN HOLE
|
9.55 – 9.63
|
|
PITCH CIRCLE DIA
|
145.7
|
LOCATION
|
4.76 – 5.13
|
|
THREAD
|
9.16 – 20TPI
|
||
| FINISHING |
Chrome Plated or Powder Coated
|
||
